RGS - 48” x 72” Slab Mill
Add on the Threaded Cross Feed option to this Jack-Of-All-Trades size from the TrueTrac Router Gantry System! With this kit, you can rest assured you're covered for virtually any moderately sized project right off the starting line.
- Working Area
- Material Width: 48 in.
- Material Length: 72 in.
- Material Thickness: 2-1/4 in.
- Modular in both length and width
- Easily add either 27-1/2 or 55 in. extension kits
This kit allows the functionality of the 22x48, 22x96, 48x48, and 48x72 capacity units depending on how you organize the guide rails.
With the Threaded Cross Feed upgrade already installed, you can achieve unparalleled precision in your cuts, making even the most challenging projects a breeze right out of the box.
-
90-Day Money Back Guarantee
-
Lifetime Warranty
-
Unlimited Phone & Email Support
-
Clean, Consistent Cuts Every Time
-
Precision Tools, American Made
Let's get technical!
- Working Area
- Material Width: 48 in.
- Material Length: 72 in.
- Material Thickness: 2-1/4 in.
- This assumes the bottom long axis rails are on the same planar surface as the material being processed.
- To handle thicker materials, simply shim under the long axis rails and lift the RGS unit relative to the main support surface.
- Outer Physical Dimensions
- Unit Width: 57 in.
- Unit Length: 84-1/2 in.
- Total Travel (Spindle Center)
- Width Travel: 49-1/2 in.
- Length Travel: 77 in.
- Unit Weight
- 40 lbs
- Materials Used
- 6063 custom extruded aluminum, satin finish hard anodize finish

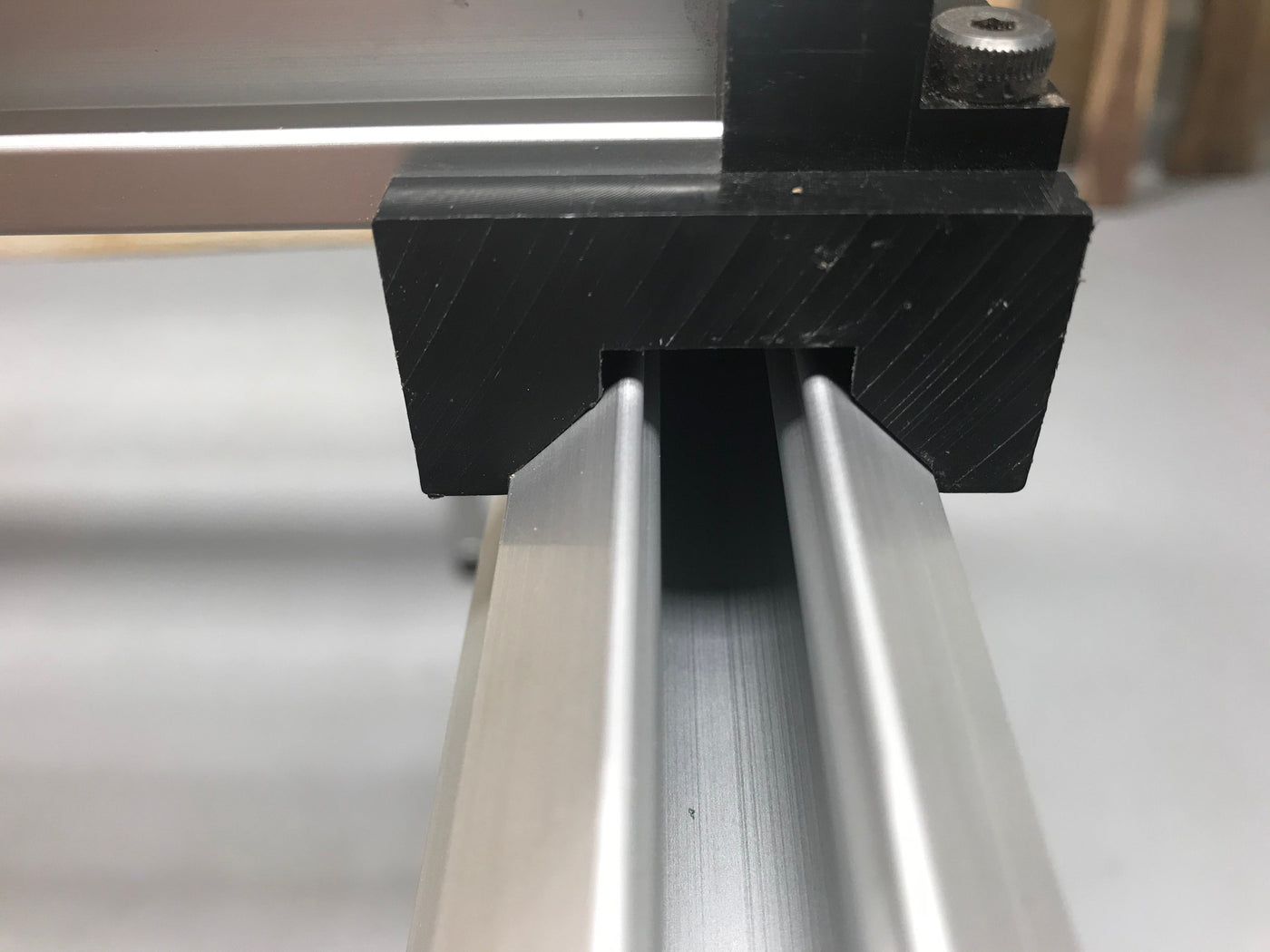

- Solid Acetal Resin, CNC machined sliding components and end caps
- 6061-T6 1/4-inch thick aluminum base plate, predrilled for 20 routers
The following items make the 48-inch x 72-inch Manual Feed Slab Mill:
- Two (2) 27-1/2 inch length RGS guide rails
- Three (3) 55 inch length RGS guide rails
- One (1) 55 inch length RGS guide rail with 55-inch Threaded Rod Kit installed
- Four (4) 6-inch length self-aligning dovetail connectors, with set screws installed
- Eight (8) Bearing End Caps, installed on rails with 10-24 Type F Machine Screws
- Two (2) Short Linear Slides (Short Runners) with bubble levels installed
- Two (2) Long Linear Slides (Long Runners)
- Two (2) Drop Downs
- One (1) Router Base Plate, pre-drilled for listed routers (see compatibility below)
- Fourteen (14) 10-24 threaded, 1/4 inch diameter, 1/4 inch length Shoulder Bolts
- Six (6) 8-32 x 1/2 L flat head Phillips drive machine screws
- Two (2) 10-24 x 3/4 L knurled brass thumb screws
- One (1) 1/8 inch L-shaped hex wrench
- Two (2) Hand Grip Knobs
- One (1) Hand Crank (for spinning the threaded rod)
The Threaded Cross Feed units can be moved manually without the rod or hand crank by simply removing the two thumb screws and moving the Router Base Assembly by hand.
Customer Reviews
My system works great. Alot of dust falls due to dust collector hangs over the edge but if you put boards next to it near same hight when it's cutting near the edge you will collect Alot more dust. This was a great purchase.
Mounting Hole Patterns Pre-Drilled For The Following Routers:
- Bosch 1617, 1618, 1619, 1619-EVS (fixed base only)
- DeWalt 616, 618, 625
- Festool OF1400, OF2200
- Hitachi M12VC
- Makita 1100 (Makita RP1800 & RP2301 require blank base plate)
- Milwaukee 5616, 5624, 5625-20
- Bora PM-6250 Fixed Base
- Porter Cable 690, 890, 7529, 97529, 8529
- Porter Cable 7518, 7519, 7538, 7539
- Ridgid 2930
- Triton TRA001, MOF001, TFBR001
Blank plate with one 1/4-inch hole drilled on center available upon request. Router plates are fully CNC machined 1/4-inch thick 6061 aluminum.
