RGS - 55" Threaded Rod Kit (48 Inch Capacity)
-
This kit allows the addition of a threaded rod to an existing 55 inch long Router Gantry System Rail.
-
Effectively, this for creating the threaded index control on a 48 inch working area capacity "bridge" unit.
-
Includes the threaded rod itself, two permanently sealed press-fit bearings, and two Acme-threaded nuts already spaced and installed on the rod.
-
90-Day Money Back Guarantee
-
Lifetime Warranty
-
Unlimited Phone & Email Support
-
Clean, Consistent Cuts Every Time
-
Precision Tools, American Made
Easily control the placement of your router across the width of a 48 inch wide capacity unit with this threaded rod kit.
-
This kit is meant for use within a 55 inch long Router Gantry System extruded rail.
-
Bearings are press fit onto the rod and will fit within any RGS Bearing End Cap.
-
Spacing between the two Acme Nuts is 4-1/4 inches on center.
Materials Used
- 1/2 - 10 Acme Threaded Rod, low carbon steel, RH thread pitch, roll formed by Keystone Threaded Products in Independence, OH
- 1606-2RS sealed deep groove ball bearings, press fit onto each end of the Acme rod
- Custom machined Acme nuts, with brass threaded inserts
- Bakelite hand wheel
- Knurled brass thumb screws for easy engagement

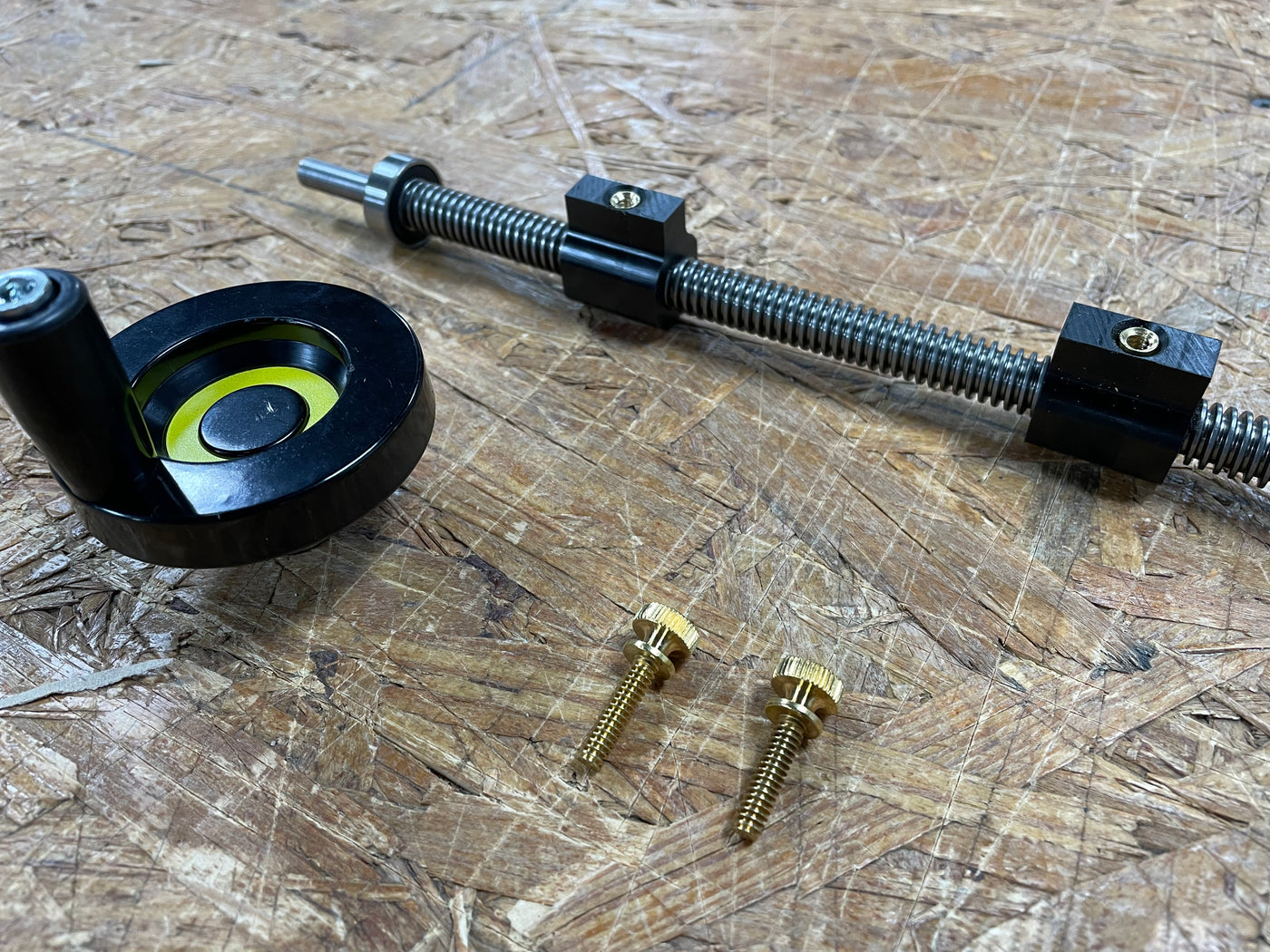

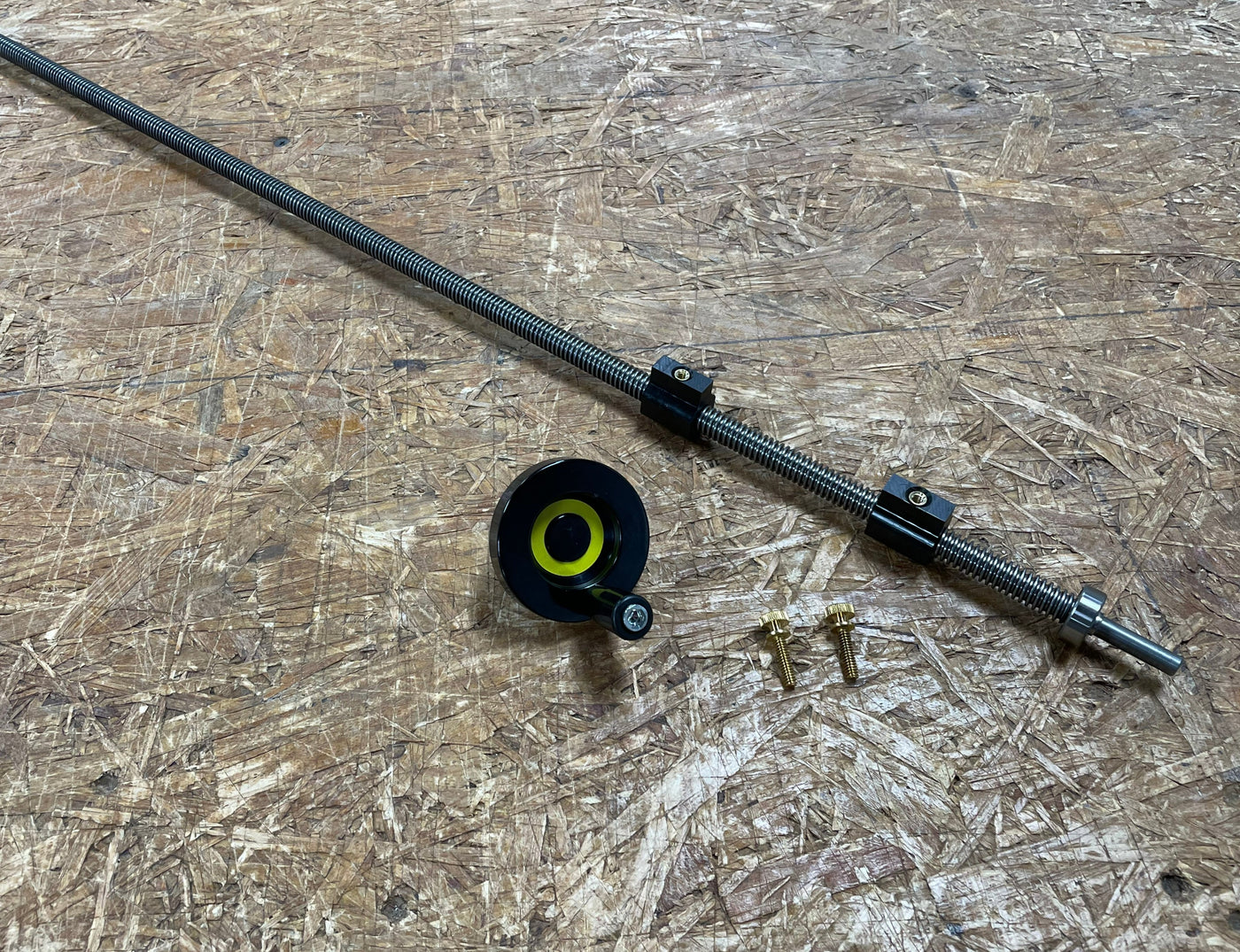

This kit includes the following:
- One (1) 57 in. length Acme threaded rod
- Two (2) 1606-2RS sealed ball bearings, installed
- Two (2) Acme Nuts, installed
- Two (2) Knurled brass thumb screws
- One (1) Bakelite hand wheel
Customer Reviews
The track works great.
The only problem is where the two rails come together.
The slide works great up to there and then it drags a little.
After the slide passes that area it good again.
If I add a little oil in that area it's all good.
If that's the only problem I have, I'm good with it
How do you keep a large but lite weight board from moving. I came close to ruining $500 worth of Black Walnut
Wedge clamps, made from scrap lumber work the best.
Take a scrap 1x or plywood and cut it in half at a gentle angle, 3 to 8 inches long. Flip so the hypotenuses/angled faces touch one another.
Use another piece of scrap at one end to create a hard stop. Slide the project up against it. Place another “surface” board and attach to the support table surface (used a longer 1x4 scrap in this photo) and affix one side of a wedge you cut to the surface board.
Second half of the wedge gets tapped in lightly to apply pressure on the project.
*Emailed photos directly to customer to resolve issue, solved problem* - Jacob
My sled kit with the threaded rod insert has been amazing. I love how few moving parts there are, and how sturdy the rails are!
For use with the TrueTrac Router Gantry System, to convert a Manual Feed unit into a Threaded Cross Feed unit.
- Not compatible with products produced by other companies.
