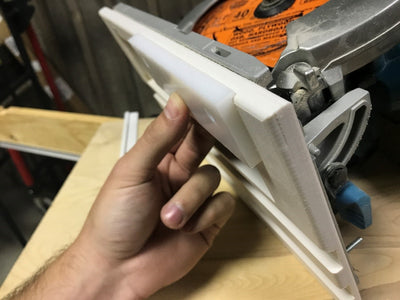

Zero Clearance Block (ZCB)
An updated replacement for the Anti-Chip Carrier that went on the outside of the blade, the Zero Clearance Block prevents chips and splinters from forming on the scrap or drop piece of lumber - Great if you're planning on using that piece later in the project for another cut!
-
90-Day Money Back Guarantee
-
Lifetime Warranty
-
Unlimited Phone & Email Support
-
Clean, Consistent Cuts Every Time
-
Precision Tools, American Made
These table saw blocks are sold individually and shipped via USPS since they're light and fit nicely in a padded envelope. ZCB includes two new mounting bolts and nuts.
There is a difference between the Pro-Series (standard, modular track) and the E-Series (lightweight, entry level) Zero Clearance saw blocks, as the two ZCB's have to be different thicknesses to accommodate the differences in saw track design.
Pro-Series tracks have two rises on the top surface, each with a 45 degree bevel, and have one anti-chip strip along each side of the track. E-Series tracks have two rectangular rises and only a single anti-chip strip along the edge of the track itself.
CNC machined from standard HDPE, these Zero Clearance Blocks are designed to either replace the original Anti-Chip Carrier (2008 - 2016) or for use with any newer system as a direct bolt on replacement piece.
The bolt spacing on the inner two holes of the ZCB also match the Dust Collection Nozzle and the brass inserts installed on any Saw Adapter Plates after 2019.
This item includes:
- One (1) Zero Clearance Block
- Two (2) 10-32 x 5/8" L flat head Phillips drive machine screws for mounting
TrueTrac Pro-Series or E-Series track saw kits
