Track Pkg 3 (12ft kit + 2ft Crosscut)
Normally retailing for $535.97 + shipping - Save $135+!
- Adapts any standard circular saw into a truly track guided cutting tool
- Produces chip and splinter free cuts on both sides of your blade
- Provides an exact line-of-cut reference for effortless layout and cut setup
- Offers full control during normal 90 degree cuts as well as 45 degree bevel cutting
- Full color Owner's Manual and video references available for set-up, as well as email or phone support
- 90-day Money-Back Guarantee, Lifetime Warranty on materials and workmanship
- Includes a total of 177 inches of track consisting of one 57-inch, two 48-inch, and one 24-inch section of our Pro-Series Guide Rails with dovetail connectors, allowing overhang for starting and finishing a 168 inch or 14ft long cut
-
90-Day Money Back Guarantee
-
Lifetime Warranty
-
Unlimited Phone & Email Support
-
Clean, Consistent Cuts Every Time
-
Precision Tools, American Made
Handling rough sawn lumber, slabs, counter tops, or other long projects?
This package spans out to handle an entire 14ft length of cutting capacity, with the added benefit of being able to easily hit 12ft lumber with the shorter 2ft track by itself to handle cross cutting the lumber after it's ripped to width!
Total of 177 inches of track extrusions, or 14-3/4ft of total length.
Cutting Capacities:
- Length = 168 inches total, with 9 inches of overhang
Depth depends on the blade diameter in use.
The adapter plate and track will remove 3/4 of an inch from your overall depth of cut (DOC).
With an average 6-1/2 inch bladed saw your DOC is 1-1/8 inches
7-1/4 blade = 1-1/2 inch material 8-1/4 blade = 2 inch material 10-1/4 blade = 3 inch material The Universal Saw Adapter Plate comes in two sizes. The standard size is appropriate for any circular saw with a 6-1/2 inch to an 8-1/4 inch diameter blade. The larger saw adapter plate is designed for the 10-1/4 inch diameter saws.

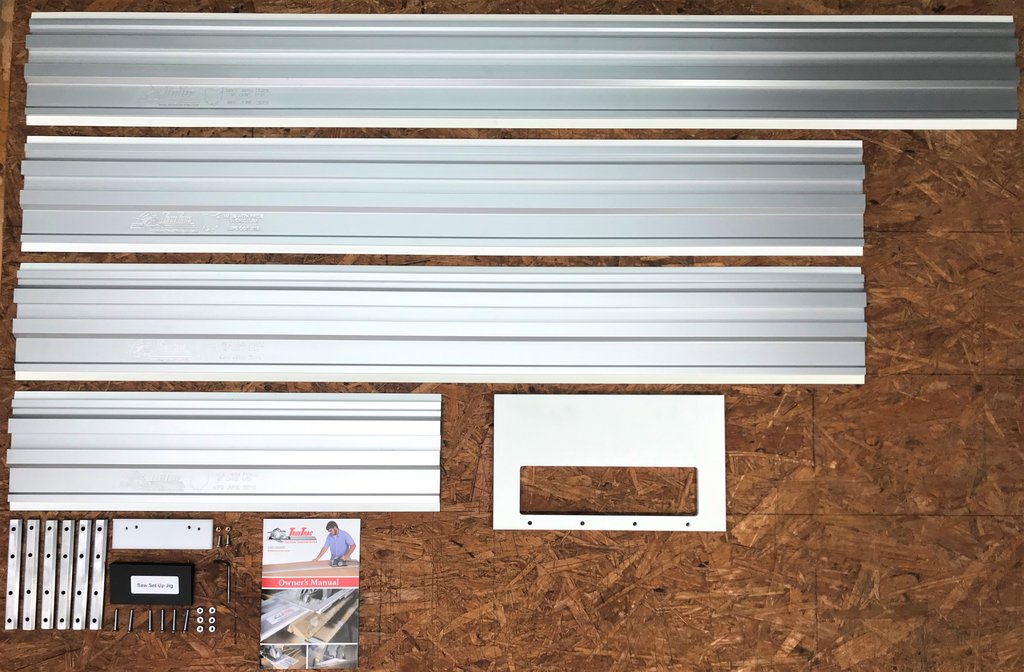

This package includes:
- One (1) 57 inch track (with (2) 57 inch length anti-chip strips, installed on track)
- Two (2) 48 inch tracks (with AC strips installed)
- One (1) 24 inch track (with AC strips installed)
- One (1) Universal Saw Adapter Plate
- One (1) setup jig
- One (1) hardware packet (6 bolts, 6 nuts, 1 L-shaped hex wrench)
- Six (6) self-aligning dovetail connectors (with set screws installed)
- One (1) Zero Clearance Block
- Hard copy of installation instructions
This system is compatible with virtually any style of circular saw.
The top surface of the Universal Saw Adapter Plate (SAP) is flat and you will be required to custom drill mounting hole locations in both the SAP and the OEM metal base plate of your circular saw. There are no saws manufactured that include predrilled holes that are useful in this scenario.
We provide a machined Set Up Block (SUB) which is used to gauge the distance from the outside edge of the SAP to the body of your saw blade. This ensures paralleism between your saw blade and arbor and the machined grooves on the underside of the SAP, as well as setting the proper spacing so that the blade trims the white Anti-Chip Strips along the edge of the track.
View the entire process by visiting the Videos section of our website, in particular the Set Up & How-To category.
